| Technical data | ||
| Technically permissible total weight: | 17000 | [kg] |
| Permissible total weight: | 16260 | [kg] |
| Load capacity: | 12000 | [kg] |
| Empty weight: | 4260 | [kg] |
| Load volume: | 15.4 | [m 3] |
| Loading space: | 11 | [m 2] |
| Loading case inside lenght: | 4545 | [mm] |
| Loading case inside width: | 2420* | [mm] |
| Overall dimensions (lenght/width/height): | 6139/2550/2652 | [mm] |
| Sidewall height: | 600+800 ( option) | [mm] |
| Floor/wall thickness: | 5/2,5 | [mm] |
| Platform height, measured from the ground: | 1252 | [mm] |
| Wheel track: | 1900 | [mm] |
| Suspension: | parabolic springs | |
| Hitch-ring load: | 1950 | [kg] |
| Tyres: | 385/65 R22,5 regenerated | |
| Maximum speed: | 40 | [km/h] |
| Tipping system: | 3-side | |
| Tipping cylinder (stroke / oil demand / pressure): | 1700mm/16L/200bar | |
| Tractor power requirement: | 84/61,7 | [hp/kW] |
| Tipping angle (backwards/sides): | 50/46 | [˚] |
| * width of the loading case suitable for EUROPALET transport | ||
| Standard equipment | ||
| Loading case with universal system of opening walls | ||
| 3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing | ||
| Width of the loading case suitable for EUROPALET transport | ||
| Reinforced floor panel with central locking mechanism | ||
| Sidewalls made of laser welded profile PF600mm with stable rear pillars; with forged locks | ||
| Closed spaces, walls protected by laser weld | ||
| Side walls reinforcement, strips tensioned | ||
| Side strips tensioned, reinforcement raiser | ||
| Rear grain hatch with a lever in a rear wall | ||
| Rear mudguards | ||
| Wheel chocks + galvanized racks (2 pcs) | ||
| Support service the load carrying body | ||
| Ladder and steps facilitating the access to the loading case | ||
| Tipping type: rectangular with closed profiles with fixed drawbar | ||
| Tandem suspension on 4 parabolic springs, wheelbase 1325mm, fixed axles equipped with drum brakes 400×80 | ||
| Universal fixed drawbar to connet with the lower or the upper hitch of the tractor | ||
| Drawbar towing hitch: rotary with towing eye Ø50mm | ||
| Drawbar support: hydraulic leg scissor-type | ||
| Braking system: double line air | ||
| Grain chute at the rear sidewall | ||
| Axles on 60 km/h* | ||
| Crank hand brake | ||
| 12 V lighting system with rear electric socket, LED lights | ||
| Clearance lights | ||
| Rear lamps with protective grating | ||
| Coiled connecting cable lighting system | ||
| Hydraulic tipping system with cut-off valve | ||
| Tipping servo-motor of 3-side tipping system | ||
| Rear couplings for second trailer | ||
| Support service of the load carrying body | ||
| Double-component chemically hardened painting materials, UV-resistant | ||
| Tipping frame colour: red RAL 3000 PRONAR | ||
| Side walls painting colour: green RAL 6010 PRONAR | ||
| *Permisible total weight 16000kg | ||

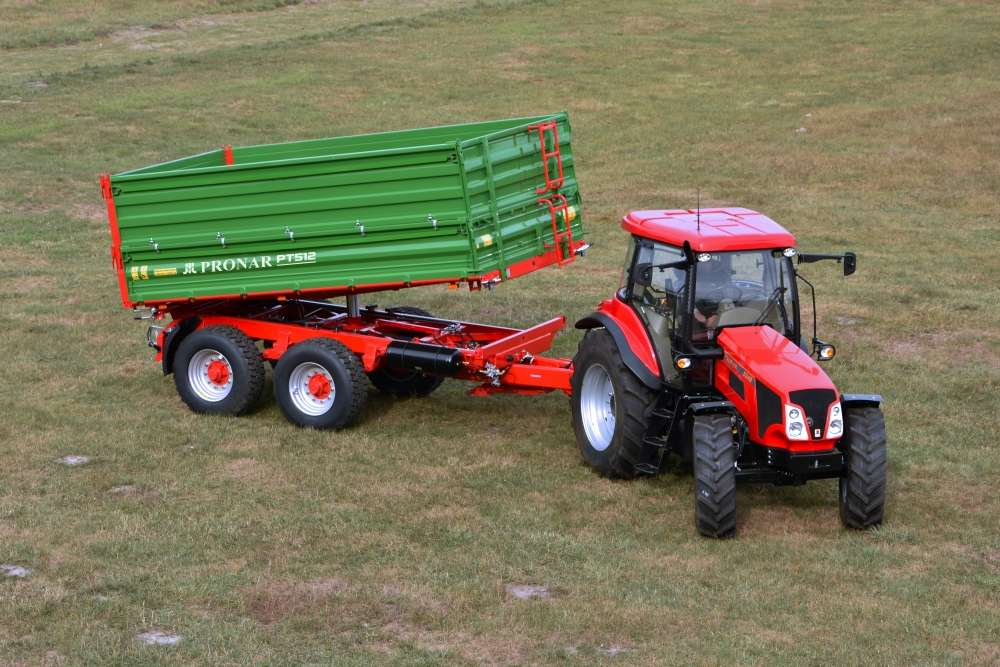

Haagis PRONAR PT512
