| Technical data | ||
|---|---|---|
| Technically permissible total weight: | 14000 | [kg] |
| Permissible total weight: | 13290* (12000**) | [kg] |
| Load capacity: | 10000 | [kg] |
| Empty weight: | 3290 | [kg] |
| Load volume: | 11.8 | [m 3] |
| Loading space: | 9.8 | [m 2] |
| Loading case inside lenght: | 4440 | [mm] |
| Loading case inside width: | trapezoid: 2190/2240 | [mm] |
| Overall dimensions (lenght/width/height): | 6116/2390/2484 | [mm] |
| Sidewall height: | 600+600 | [mm] |
| Floor/wall thickness (mm) : | 5/2,5 | [mm] |
| Platform height, measured from the ground: | 1250 | [mm] |
| Wheel track: | 1700 | [mm] |
| Suspension: | Leaf springs | |
| Hitch-ring load: | 1860 | [kg] |
| Tyres: | 15,0/70-18 | |
| Maximum speed: | 30 | [km/h] |
| Tipping system : | 3-side | |
| Tipping cylinder (stroke / oil demand / pressure) | 1700/13L/200bar | |
| Tractor power requirement: | 67,6/49,7 | [hp/kW] |
| Tipping angle (backwards/sides): | 50/46 | [˚] |
| * for trailers with maximum speed 30km/h | ||
| **for trailers with maximum speed 40km/h | ||
| Standard equipment | ||
| Loading case with universal system of opening walls | ||
| 3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing | ||
| Selection of the direction of tipping by two pins that protects against incorrect handling | ||
| Trapezoidal shape of the loading case ( chest expands by 50 mm in the rearward direction ), reinforced floor panel | ||
| Reinforced floor panel with central locking mechanism | ||
| Frame: rectangular with closed profiles made of high resistant steel | ||
| Sidewalls and extentions made of high quality, strong, laser welded profiles each PF600mm, made of profiled sheets; with stable rear pillars; with forged hinges and locks | ||
| Closed spaces of the sidewalls and extensions protected by laser weld | ||
| Support service of the tool box | ||
| Sidewalls fastening string | ||
| Rear grain hatch with a lever in a rear wall | ||
| Tandem suspension on 4 leaf springs, wheelbase 1160mm, rigid axles equipped with drum brakes | ||
| Universal rigid drawbar to connect with the lower or the upper hitch of the tractor | ||
| Drawbar towing hitch: rotary with fixed ∅50 towing eye | ||
| Drawbar support: hydraulic supporting leg (scissor) | ||
| Drawbar support: hydraulic supporting leg (scissor) | ||
| Braking system: double air line | ||
| Parking crank hand brake | ||
| Crank hand brake | ||
| 12 V lighting system with rear electric socket | ||
| Rear lamps with protective grating | ||
| Coiled connecting cable lighting system | ||
| Hydraulic tipping system with cut-off valve | ||
| Telescopic servo-motor of 3-side tipping system | ||
| Rear mudguards | ||
| Wheel chocks + galvanized racks (2 pcs) | ||
| Double-component chemically hardened painting materials | ||
| Tipping frame colour: red RAL 3000 PRONAR | ||
| Side walls painting colour: green RAL 6010 PRONAR | ||
| Mechanical support of the loading case | ||
| Ladder and steps facilitating the access to the loading case | ||

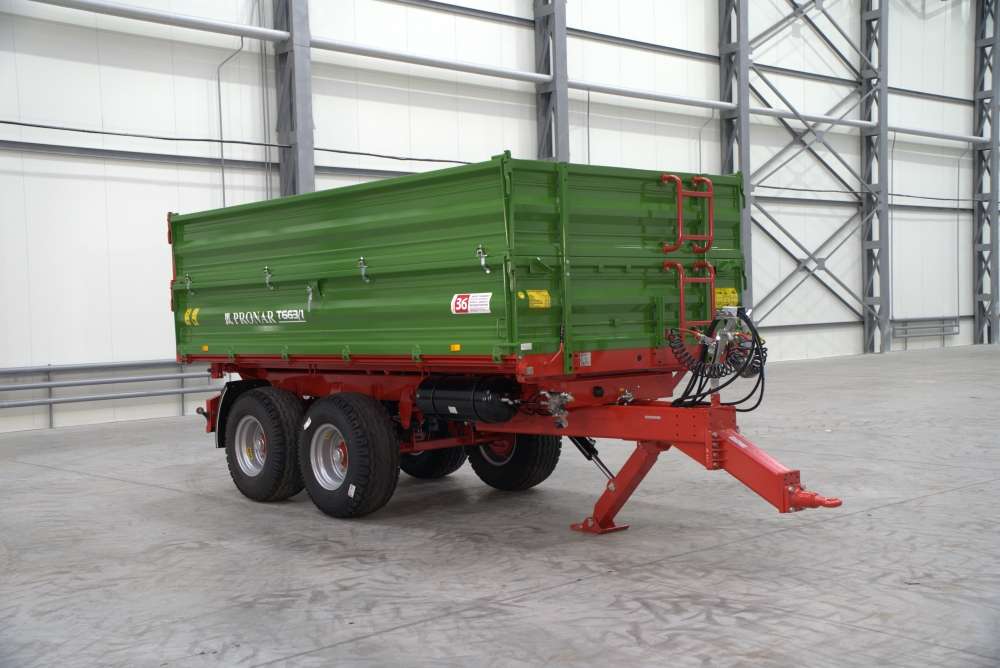

Haagis PRONAR T663/1 & T663/1 SILO
