| Technical data* | ||
| Allowable total weight (technically): | 24000 | [kg] |
| Load capacity: | 1700 | [kg] |
| Empty weight: | 6300 | [kg] |
| Load volume with extensions without extensions: | 26.6 | [m 3] |
| Loading space: | 13.7 | [m 2] |
| Loading case inside length: | 6700 | [mm] |
| Loading case inside width: | 2240/2300 | [mm] |
| Loading case inside height: | 1750 | [mm] |
| Dimensions: lenght/width/height: | 8520/2550/3040 | [mm] |
| Sidewall height (inside): | 1750 + 600 (option) | [mm] |
| Floor/wall thickness: | 4-Apr | [mm] |
| Platform height, measured from the ground: | 1290 | [mm] |
| Wheel track: | 1960 | [mm] |
| Suspension: | parabolic springs | |
| Hitch-ring load: | 4000 | [kg] |
| Tyres: | 385/65R22.5 | |
| Maximum speed: | 40 | [km/h] |
| Tipping system: | 1-side | |
| Tipping cylinder (piston stroke/oil requirement/working pressure): | 2990mm/40L/200bar | |
| Tractor power requirement: | 136.7/100,5 | [hp/kW] |
| Tipping angle (backwards): | 55 | [˚] |
| * Technical data for trailer without extensions 600 mm | ||
| Standard equipment | ||
| Monocoque loading case with profiled sidewalls and reinforced upper edges of the sidewalls | ||
| Hydraulic tailgate with automatic pressing system | ||
| Grain hatch with lever in a rear wall | ||
| Window on the front wall of the loading case | ||
| Chassis frame made of rectangular closed profiles made of hight strength steel | ||
| Tandem suspenssion with 4 parabolic springs, 1500 mm wheelbase with fixed axles equipped in drum brakes 406×120 | ||
| Universal sprung drawbar with height adjustment to couple with lower or upper hitch of the tractor | ||
| Drawbar hitch: rotary with Ø50 towing eye | ||
| Drawbar support: telescopic with 2-section gear | ||
| Braking system: double line air or single line air or hydraulic | ||
| Crank hand brake | ||
| Rear underrun protection, foldable | ||
| Metal shields over wheels | ||
| Wheel chocks + racks (2 pcs) | ||
| 12 V lighting system (bulbs) with rear electric sockets | ||
| Rear lamps with protective grating | ||
| Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables | ||
| Service support of the loading case | ||
| Coloured hydraulic wires | ||
| Foldable ladder and steps facilitating the access to the loading case | ||
| Double-component chemically hardened painting materials, UV-resistant | ||
| Tipping frame painting colour: red RAL3000 PRONAR | ||
| Loading case painting colour: green RAL 6010 PRONAR | ||

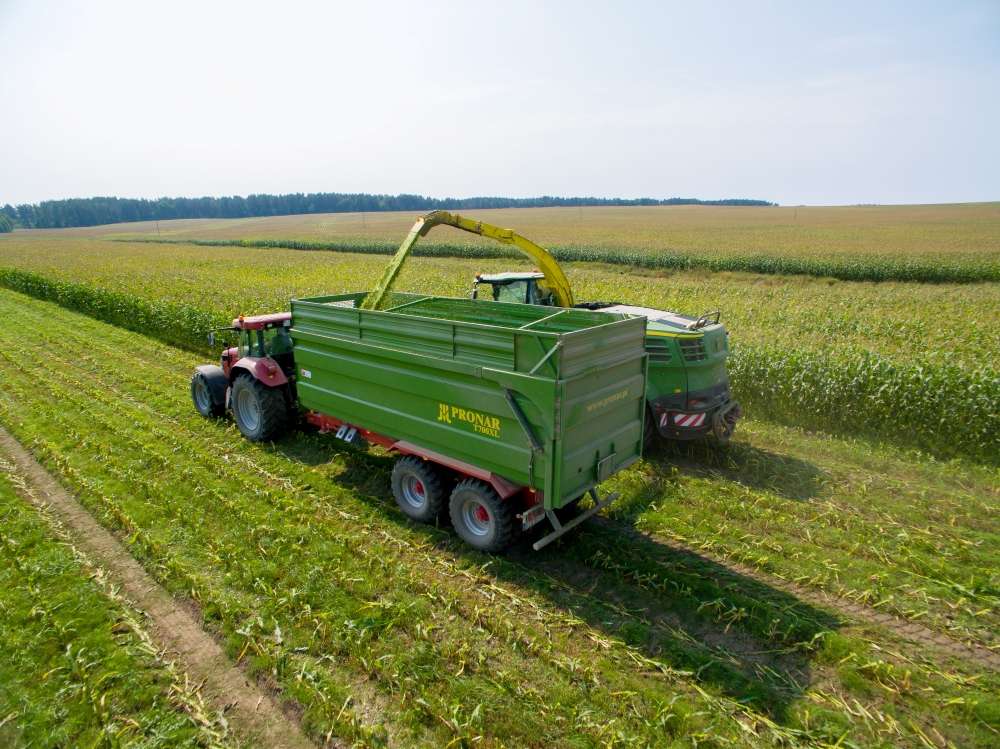

Haagis PRONAR T700XL
