| Technical data | ||
| Permissible total weight: | 24000* | [kg] |
| Empty weight: | 7700 | [kg] |
| Load capacity: | 16300** | [kg] |
| Load volume: | 26 | [m 3] |
| Loading space: | 18.55 | [m 2] |
| Loading case inside lenght: | 7696 | [mm] |
| Loading case inside width: | 2410*** | [mm] |
| Lenght/Width/Height | 10087/2548/ 2800 | [mm] |
| Sidewall height: | 800+600 | [mm] |
| Floor/wall thickness: | 2/5/2005 | [mm] |
| Platform height, measured from the ground: | 1390 | [mm] |
| Wheel track: | 1960 | [mm] |
| Suspension: | parabolic springs | |
| Tyres: | 385/65 R22.5 RE | |
| Maximum speed: | 40 | [km/h] |
| Tipping system: | 3-side | |
| No. of telescopic cylinders: | 2 | |
| Number of tipping cylinder sections: | 5 | |
| Piston stroke: | 2990 | [mm] |
| Oil requirement: | 68 | [l] |
| Working pressure: | 200 | [bar] |
| Tractor power requirement: | 150/110.2 | [hp/kW] |
| Tipping angle (backwards/sides): | 47/45 | [˚] |
| * depends on the road regulations in each country | ||
| ** depends on the road regulations and equipment | ||
| *** width of the loading case suitable for EUROPALET transport | ||
| Standard equipment | ||
| Loading case with universal system of sidewall opening | ||
| Three side tipping system of the loading case | ||
| Drawbar: V type with Ø40 fixed towing eye | ||
| rotating turnable | ||
| Chassis frame of welded closed rectangular profiles made of high strength steel | ||
| Axles for 60km/h | ||
| Braking system: double line air with ALB or double line air or hydraulic | ||
| Crank hand brake | ||
| 12 V lighting system with rear electric socket | ||
| Hydraulic tipping system with cut-off valve | ||
| zabezpieczającymi, z wyjściem do drugiej przyczepy | ||
| Two telescopic cylinders of 3-side tipping system | ||
| Sidewalls made of profile PF 800+600 with middle post, with rim 60mm with forged hinges and locks | ||
| Central locking system | ||
| Grain hatch with lever in rear wall | ||
| Springs facilitating opening the sides (4 pcs) | ||
| A set of plastic front and rear mudguards | ||
| Double-component chemically hardened painting materials | ||
| Ladder and side steps facilitating access to the loading case | ||
| Wheel chocks and racks | ||
| Tipping frame painting colour: red RAL3000 PRONAR | ||
| Sidewall painting colour: green RAL6010 PRONAR | ||

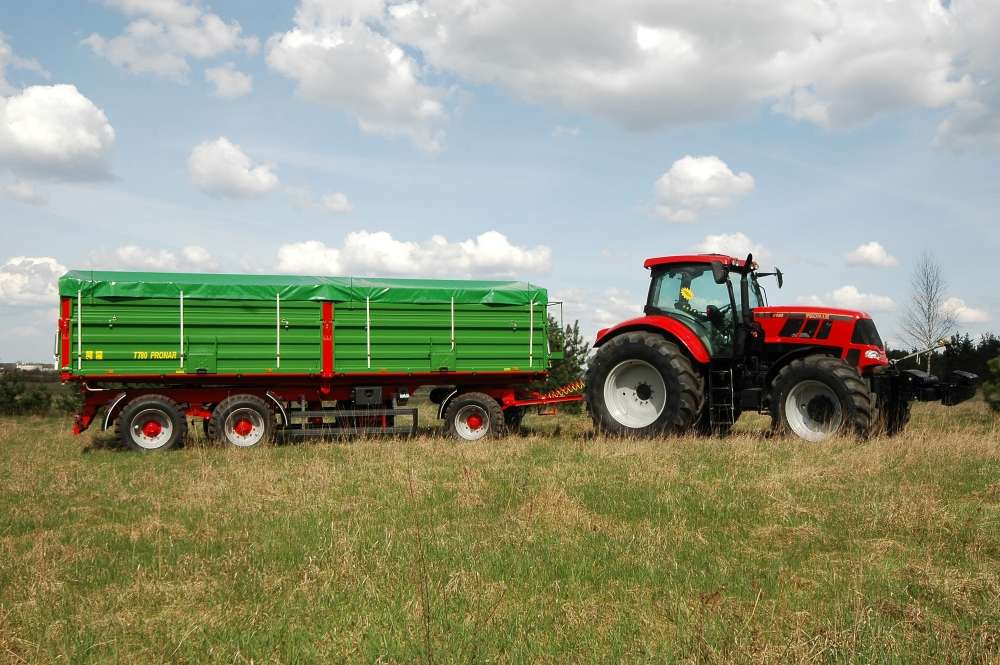

Haagis PRONAR T780
