| Technically permissible total weight: | 35000 | [kg] |
| Permissible total weight: | 33000 | [kg] |
| Load capacity: | 23500 | [kg] |
| Empty weight: | 9500 | [kg] |
| Load volume: | 36.57 | [m 3] |
| Loading space: | 19-Jul | [m 2] |
| Loading case inside length: | 8320 | [mm] |
| Loading case inside width: | 2370 | [mm] |
| Length/Width/Height: | 10510/2750/3543 | [mm] |
| Sidewall height: | 2000 | [mm] |
| Floor/wall thickness: | 6-Apr | [mm] |
| Platform height, measured from the ground: | 1500 | [mm] |
| Wheel track: | 2150/2200 | [mm] |
| Suspension: | parabolic springs | |
| Hitch-ring load: | 3000 | [kg] |
| Tyres: | 550/60 – 22.5 | |
| Maximum speed: | 40 | [km/h] |
| Unloading system: | movable + tipping | |
| Oil requirement: | 40 | [l] |
| Working pressure: | 200 | [bar] |
| Tractor power requirement: | 182/133.8 | [hp/kW] |
| Movable wall tipping angle: | 55 | [˚] |
| Standard equipment | ||
| Sealed movable wall | ||
| Sliding wall provided with elastomeric seals ensuring better sealing | ||
| Chassis frame welded from rectangular closed profiles made of high-strength steel | ||
| Hydraulically driven tailgate with automatic blocking system | ||
| Drawbar with rotary towing eye Ø50 | ||
| Drawbar support: telescopic with 2-section gear | ||
| Drawbar: upper/lower universal transportation hitch with steel leaf springs shock absortion | ||
| Tridem suspension on 6 parabolic springs with 1810 mm axle track, compensatory swingarms, fixed middle axle and active steering of front and rear axle | ||
| Hydraulic turning block with manual pump filling system | ||
| Axles for 60 km/h, drum brakes Ø406×140 | ||
| Turning system facilitated by tractor’s hitch system according to ISO 26402 (the trailer’s not equipped in tractor’s turning system) | ||
| Turning system facilitated by tractor’s hitch system according to ISO 26402 (the trailer’s not equipped in tractor’s turning system) | ||
| Pneumatic hand brake | ||
| Rear underrun protection according to 70/221/EWG (2006/20/WE) | ||
| Wheel chocks and racks | ||
| A set of plastic mudguards and steel mudguards over the wheels | ||
| Rear lighting system with side marker lights and bars protecting against damage | ||
| Electric system with lateral commercial road lighting | ||
| Hydraulic movable front wall with automatic tipping system and tipping angle of 55˚ in the last phase of unloading | ||
| Hydraulic pipes marked with colors to better identification of their destiny | ||
| A ladder and side steps facilitating access to the loading case | ||
| Control windows on a movable wall | ||
| Grain hatch with lever in rear wall | ||
| Double-component chemically hardened painting materials | ||
| Frame painting colour: red RAL3000 PRONAR | ||
| Loading case painting colour: green RAL6010 PRONAR | ||

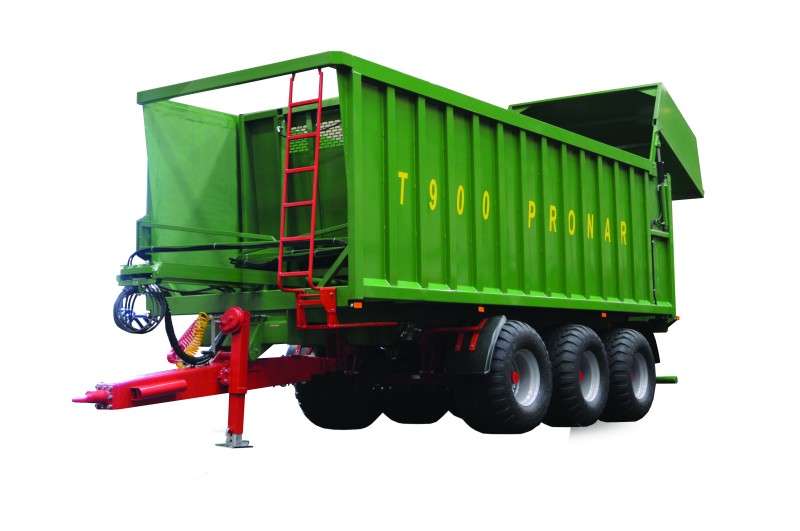

PRONAR haagis T900
