| Allowable total weight: | 11000 | [kg] |
| Load capacity: | 7850 | [kg] |
| Empty weight: | 3150 | [kg] |
| Loading space: | 13,2 * | [m 2] |
| Loading case inside length: | 6290 | [mm] |
| Loading case inside width: | 2240 | [mm] |
| Loading case inside height: | 2100 ** | [mm] |
| Dimensions: length/width/height | 8320/2550/2860 | [mm] |
| Sidewall height: | 1500 | [mm] |
| Floor/ sidewalls thickness: | 4-Mar | [mm] |
| Platform height, measured from the ground (transport position/ loading position): | 700/200 | [mm] |
| Wheel track: | 2160 | [mm] |
| Suspension: | hydraulic (single axle) | |
| Hitch-ring load: | 2000 | [kg] |
| Tyres: | 385/65R22,5 | |
| Maximum speed: | 40 | [km/h] |
| Tractor power requirement: | 41,6/30,6 | [hp/kW] |
| * surface without inner wheel arches | ||
| ** height from the ground to the highest point of the canvas cover frame | ||
| Standard equipment | ||
| • Hydraulically lowered loading case facilitating animal (un)loading | ||
| • Chassis frame made of steel closed rectangular profiles | ||
| • Side doors (on the right) facilitating access to the transported cattle | ||
| • Wide-opening of rear door | ||
| • Sealed chequer plate floor with two drainage holes | ||
| • Single axle suspension with 2 hydraulic cylinders fitted with drum brakes (406×120) | ||
| • Hydraulic vibration shock absorbers | ||
| • Drawbar towing hitch: rigid, to couple with lower hitch of the tractor | ||
| • Drawbar towing hitch: rotary with towing eye 50 mm | ||
| • Drawbar support: hydraulic with single-step gear | ||
| • Braking system: double line air with manual braking force control | ||
| • Crank hand brake | ||
| • Lighting system 12V (LED) | ||
| • Spiral lightning system cable | ||
| • Laced cover frame | ||
| • Laced cover | ||
| • Wheel chocks + galvanized racks | ||
| • Double-component chemically hardened painting materials, UV-resistant | ||
| • Platform painting colour: green RAL6010 PRONAR | ||

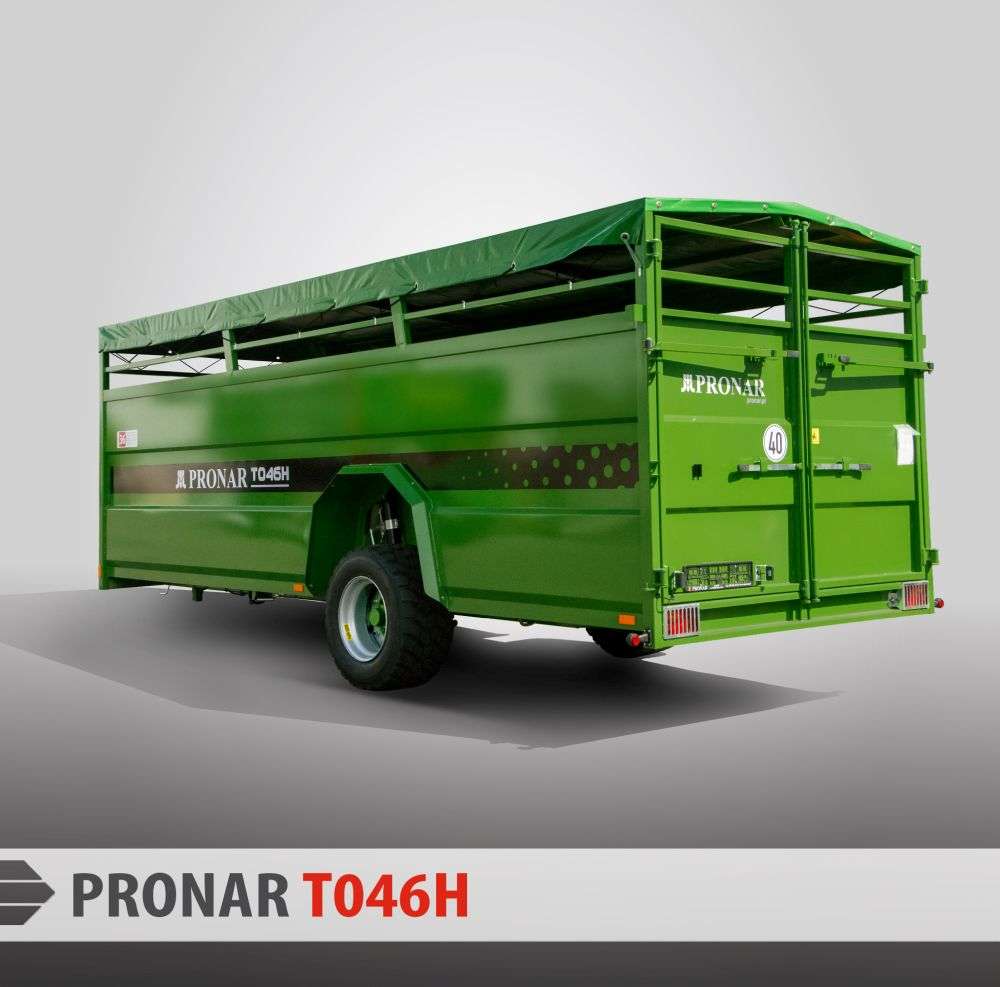

PRONAR loomaveohaagis T046H
