| Technical data | ||
| Technically permissible total weight: | 4300* | [kg] |
| Permissible total weight: | 3780 | [kg] |
| Load capacity: | 2500 | [kg] |
| Empty weight: | 1280 | [kg] |
| Load volume: | 3.1 | [m 3] |
| Loading space: | 6-Feb | [m 2] |
| Loading case inside length: | 3310 | [mm] |
| Loading case inside width: | 1860 | [mm] |
| Dimensions: length/width/height: | 4950/2045/1430 | [mm] |
| Sidewall height: | 500 | [mm] |
| Floor/wall thickness: | 3-Feb | [mm] |
| Platform height, measured from the ground: | 890 | [mm] |
| Wheel track: | 1500 | [mm] |
| Suspension: | fixed | |
| Hitch-ring load: | 600 | [kg] |
| Tyres: | 10.0/75-15.3 | |
| Maximum speed: | 40 | [km/h] |
| Tipping system: | 3-side | |
| Number of tipping cylinder sections: | 4 | |
| Tipping cylinder (piston stroke/oil requirement/working pressure) | 1300mm/8L/160bar | |
| Tractor power requirement: | 26/19 | [hp/kW] |
| Tipping angle (backwards/sides): | 50/46 | [˚] |
| * Technically permissible total weight with reduced speed to 30 km/h | ||
| Standard equipment | ||
| Loading case with universal system of sidewalls opening | ||
| Central locking system | ||
| Tipping frame: triangular made of open profiles | ||
| Drawbar: lower transportation hitch with Ø50 fixed towing eye | ||
| Drawbar support: supporting wheel | ||
| Braking system: single line air or double line air or hydraulic | ||
| Parking brake with crank | ||
| 12V lighting system with rear electric socket | ||
| Tipping system with cut-off valve | ||
| Three side tipping system | ||
| Sidewalls made of PRONAR profiles 500 mm | ||
| Sidewalls fastening string | ||
| Double-component chemically hardened painting materials | ||
| Wheel chocks and racks | ||
| Tipping frame painting colour: red RAL3000 PRONAR | ||
| Side walls painting colour: green RAL6010 PRONAR | ||
| Mechanical support of the loading case | ||

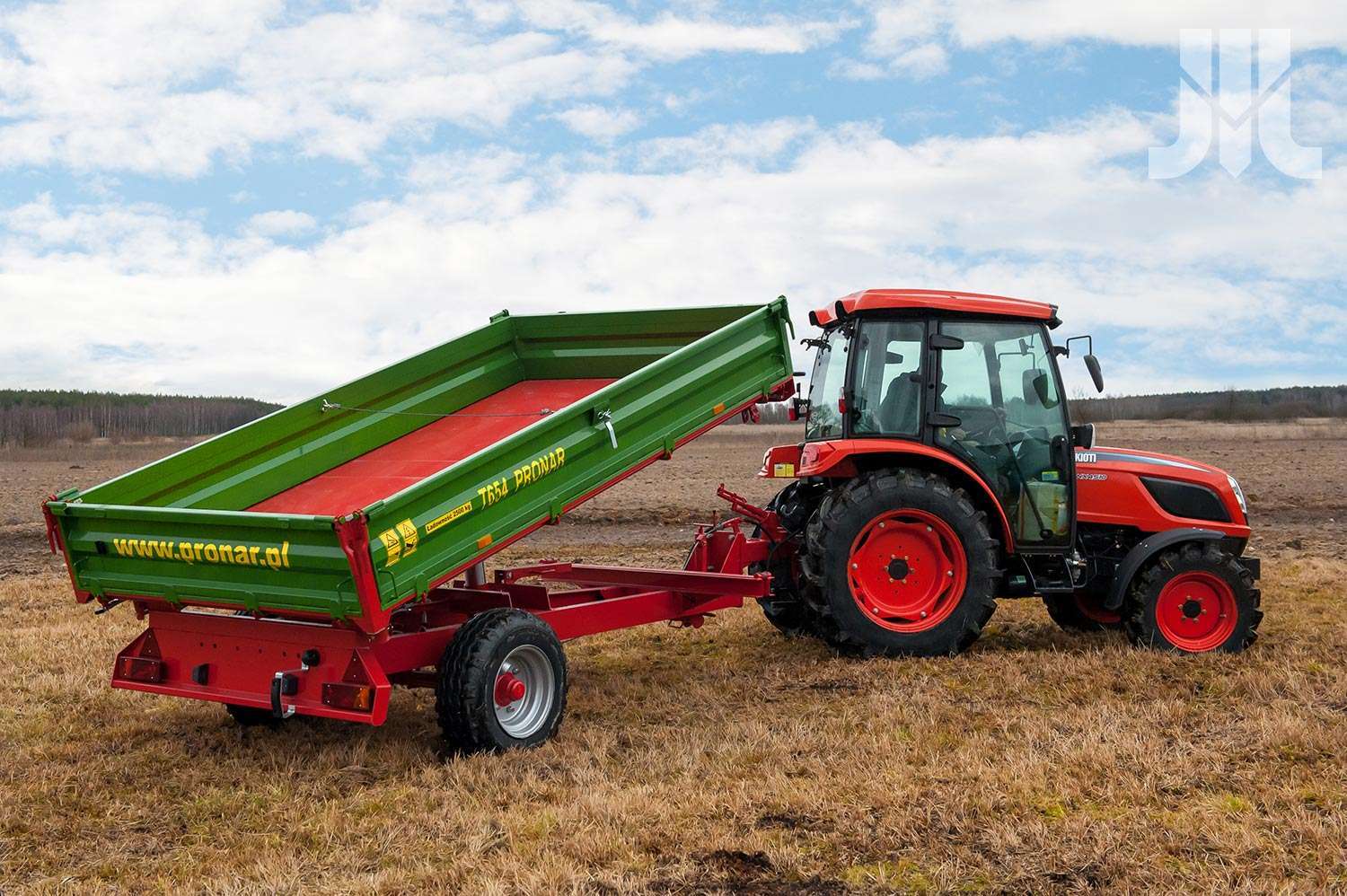

Trailer PRONAR T654
