| Technical data | ||
| Technically permissible total weight: | 20000 | [kg] |
| Permissible total weight: | 18000* | [kg] |
| Load capacity: | 13165** | [kg] |
| Empty weight: | 4840 | [kg] |
| Load volume: | 19-May | [m 3] |
| Loading space: | 12-Jul | [m 2] |
| Loading case inside lenght: | 5250 | [mm] |
| Loading case inside width: | 2410*** | [mm] |
| Lenght: | 7300 | [mm] |
| Width: | 2550 | [mm] |
| Height: | 3250 | [mm] |
| Sidewall height: | 1540 | [mm] |
| Sidewalls material: | waterproof plywood | |
| Floor/wall thickness: | May-18 | [mm] |
| Platform height, measured from the ground: | 1390 | [mm] |
| Wheel track: | 1900 | [mm] |
| Suspension: | parabolic springs | |
| Tyres: | 385/65 R22.5 RE | |
| Maximum speed: | 40 | [km/h] |
| Tipping system: | 3-side | |
| Piston stroke: | 1980 | [mm] |
| Oil requirement: | 18 | [l] |
| Working pressure: | 200 | [bar] |
| Tractor power requirement: | 109.2/80.3 | [hp/kW] |
| Tipping angle (backwards/sides): | 47/47 | [˚] |
| * depends on the road regulations in each country | ||
| ** depends on the road regulations and equipment | ||
| *** width of the loading case suitable for EUROPALET transport | ||
| Standard equipment | ||
| Loading case with special walls openning system | ||
| Reinforced floor pan with central sidewalls locking system | ||
| Drawbar: V type with Ø40 fixeed towing eye | ||
| Rotating turnable | ||
| Braking system: single line air or double line air or hydraulic | ||
| Axles for 60 km/h | ||
| Parking brake with crank | ||
| Rear conections to a second trailer | ||
| Tipping system with cut-off valve | ||
| Telescopic servo-motor of 3-side tipping system | ||
| Segmented sidewalls with middle posts | ||
| Right-sidewall height 800+740 mm, swing and collapsible opening system | ||
| Left-sidewall height 1540 mm, door-like opening system | ||
| Rear wall height 1540mm, swing and collapsible opening system | ||
| Beam for spare wheel (only for tyres: 385/65 R22,5 and 425/65 R22,5) | ||
| Spare wheel 385/65 R22,5 Regenerated | ||
| Grain hatch with a lever in a rear wall | ||
| Wheel chocks and racks | ||
| 12V LED lighting system with rear electric socket | ||
| Coiled connecting cable for the lighting installation | ||
| Rear lamps with protective grating | ||
| Plastic rear mudguards | ||
| Double-component chemically hardened painting materials | ||
| Ladder and side steps facilitating access to the loading case | ||
| Loading case adapted to transport europallets | ||
| Frame for the cover | ||
| Mechanical support of the loading case | ||
| Clearence lights | ||
| Tipping frame painting colour: red RAL3000 PRONAR | ||
| Spare wheel 385/65 R22,5 Regenerated | ||

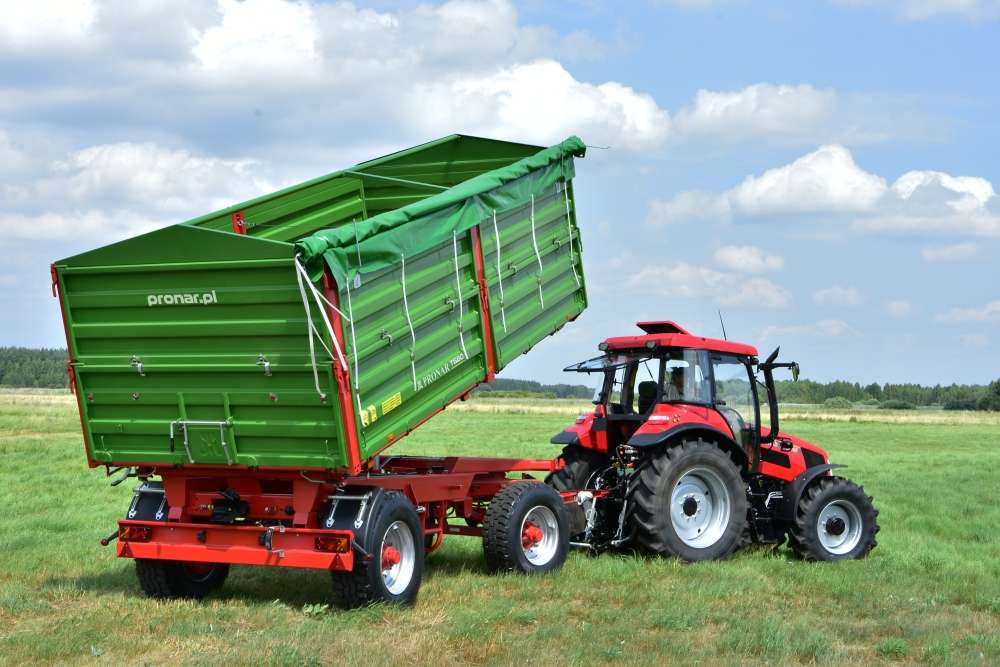

Trailer PRONAR T680P
